Product details
Description

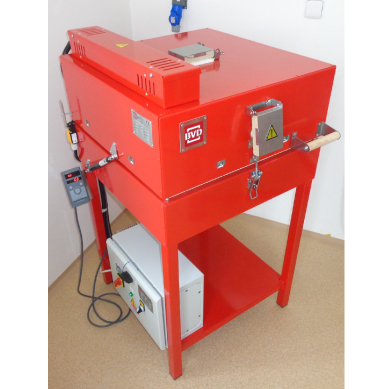

Kiln for glass fusing, slumping and bending
High-quality kilns made to order. All kilns include a controller for ease of use.
Want to see a BVD kiln? Come by PELI Glass, we have one here!
Temp, max = 850°C
Inner dimensions: 50 x 50 x 20 cm (WxDxH)
Outer dimensions: 80 x 85 x 125 cm (WxDxH)
Weight: 100 kg
3,2 kW, 1x 230V
The BVD 05.05.02-8 is provided with:
– Bentrup TC88e controller
– Manual flap (air vent) in the top
– Sight hole on the front wall
– Adjustable feet for perfect kiln leveling
– Storage platform under the kiln
The heating elements are made of Kanthal A1 resistant wire and all elements are set on ceramic tubes. Elements are easy to change, if needed! There is a 25 year guarantee on the kiln, with the exception of consumable parts (fuses, relays, heating elements) which have a 6 month guarantee.
All BVD kilns are made to order. You can choose any color for your kiln using the RAL color chart.
Delivery times between 2-3 months.
*** Includes a PELI Glass discount on all individual paints, paintbrushes and mediums for 3 months from time of purchase of this oven. ***
BVD brochure ‘Electric Kilns for Glass’ – English
BVD prices for Electric Kilns for Glass, w/ options
BVD prices for Ceramic kilns
BVD prices for Casting, Decoration, Annealing, Tempering kilns for Glass
TECHNICAL PARAMETERS (PS 05.05.02-8)
– operational temperature: up to 850 °C
– inner dimensions: width 500 mm, length 500 mm, height: 200 mm
– kiln weight: approximately about 100 kg
– outer dimensions: width 800 mm including controller, length 850 mm, height 1250 mm
– surface finishing of skeleton: powder color, oven baked, shade upon request (RAL shade)
– outer mantle: stainless steel sheets
– insulation: light refractory bricks in the table, fiber insulation in the hood (Superwool 607 blanket)
– connection system: single phase 1NPE 230 50Hz
– heating power: 3,2 kW in the top
– heating art: resistant wire KANTHAL A1 – spirals on ceramic tubes, spirals installed in the top
– temperature uniformity: +/- 7°C (dwell at the operational temperature)
– number of heating zones: 1
– thermocouple: 1x K (NiCr-Ni)
– heating switches: solid state relays (semi-conductor switches)
– controller: BENTRUP TC 88e HAN15Da-SSR (single zone controller), 15 freely programmable graphs, 20 steps each
– airing and cooling: 1 airing flap in the top, opened manually; 1 airing/observation flap on the front, opened manually

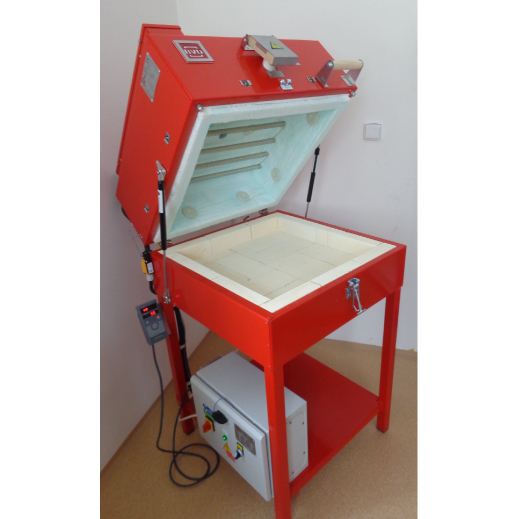

– kiln opening: manual, by means of pneumatic struts
– side of installing switchboard: on the LEFT
– security switch: installed on kiln side wall, reads the position of the hood
– overheating security: alarm contact of the controller
KILN CHARACTERISTICS (PS 05.05.02-8)
– easy and comprehensive control
– perfect temperature homogeneity
– automatic temperature control
– low energy consumption
– low energy losses (perfect insulation)
– long service life of heating elements
– high quality and certificated raw materials by renowned suppliers
– high efficiency of heating coils
INCLUDED
– documentation and manuals in English or German
– declaration of conformity – CE Certificate
– protection packaging (large palette with a wooden frame) for safe truck transportation
EXCLUDED
– placement of the kiln inside the facility
– setting the kiln into operation
TERMS
Warranty: 24 months, heating elements excluded
After sale service: by sending spare parts
